BlueBotics_mini-lite_2022_rightprofile

miniTM lite

THE MOBILE ROBOT PLATFORM
FOR DIVERSE APPLICATIONS

Your
application,
our mobile robot

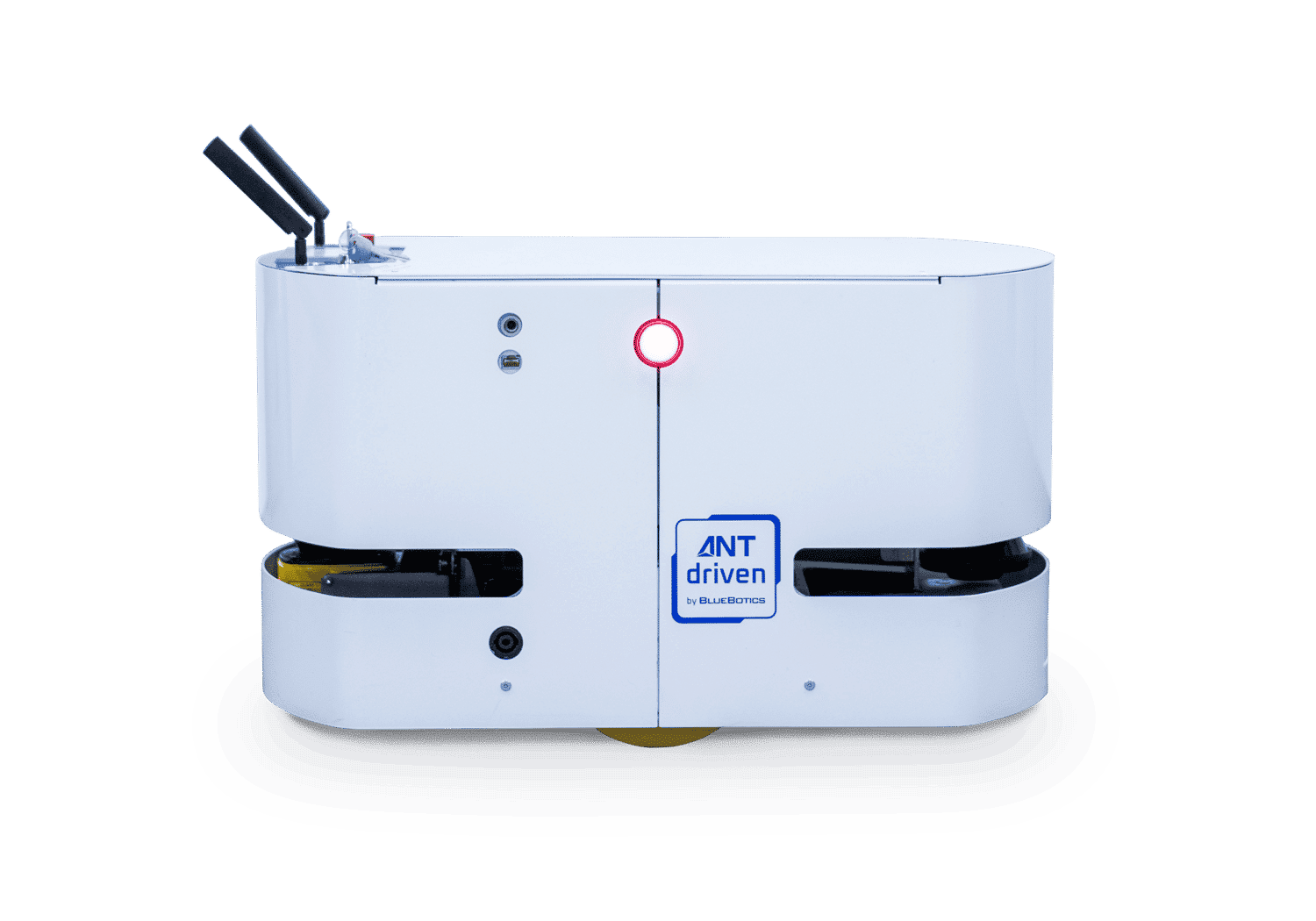

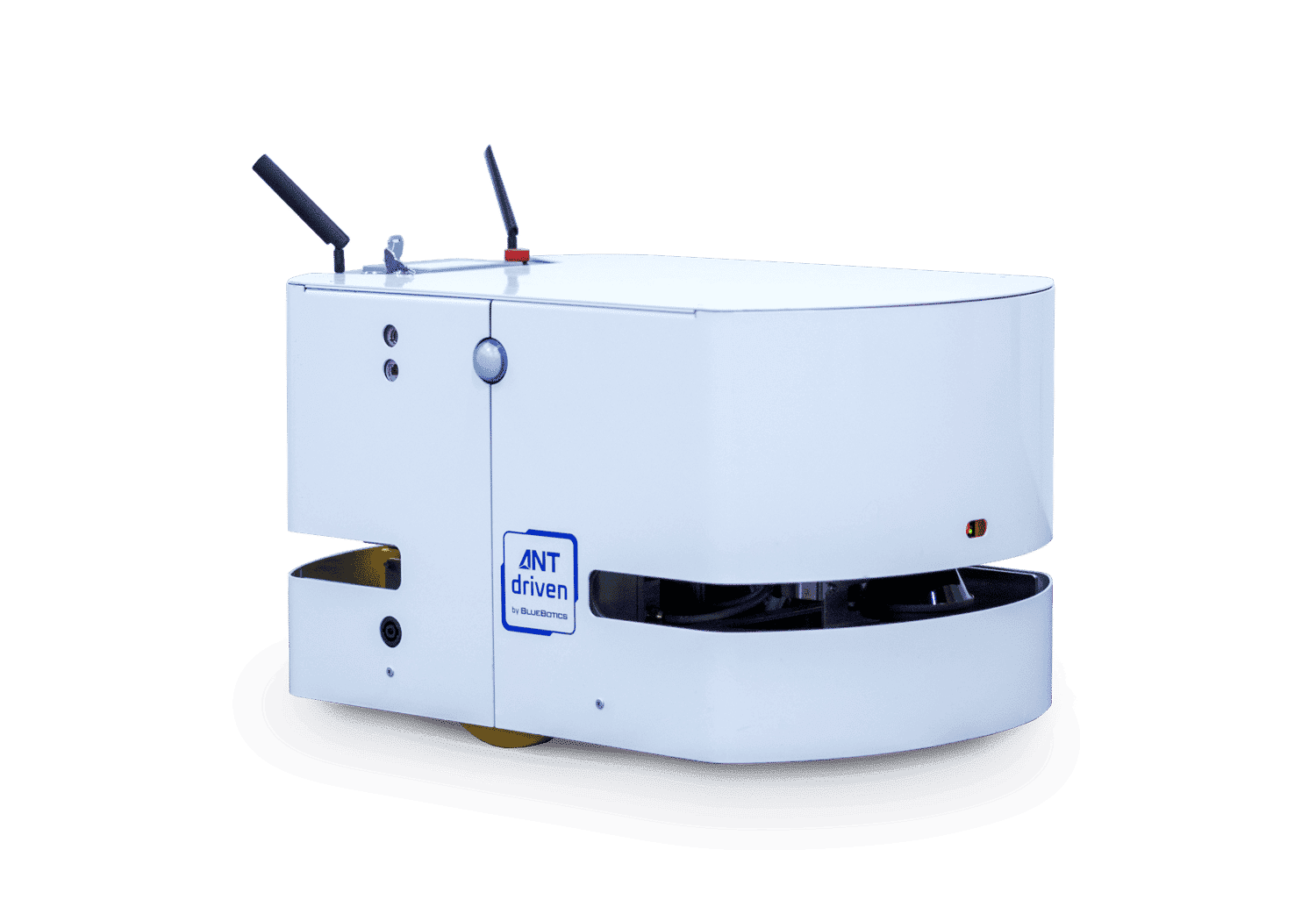

The BlueBotics mini™ lite is a flexible, industry-proven autonomous mobile robot (AMR) platform. Driven by our Autonomous Navigation Technology (ANT) and therefore immediately fleet-ready, it is the perfect base on which to develop a vehicle that meets your organization’s specific needs.

Ideal for:

  • Light material handling (boxes/racks/trays)
  • Integration of small industrial robots/cobots
  • Custom applications

What features does miniTM lite include?

The BlueBotics mini™ lite mobile robot platform includes the following features. If you have any additional requirements or questions, please don't hesitate to get in touch.

ANT(R) Automomous Navigation Technology

ANT navigation technology

Lift Module Option

Lift module option

Conveyor Module Option

Conveyor module option

Custom Module Option

Custom module development

Obstacle Avoidance Option

Obstacle avoidance option

Fleet Management

Fleet management

  • Autonomous Navigation Technology

    ANT navigation technology

  • Lift module

    Lift module option

  • Conveyor module

    Conveyor module option

  • Custom module development

    Custom module development

  • Obstacle Avoidance Option

    Obstacle Avoidance Option

  • Fleet management

    Fleet Management

Technical Specifications

MiniTM lite

Dimensions

46 x 39 x 68 cm (WxHxL)

Weight (platform)

100 kg

Weight (modules)

15 - 25 kg

Payload capacity

100 kg

Max. speed

1.5 m/s

Autonomy

>6 hours

Charging time

1.2 hours

Automatic recharging

Optional

Safety

270° laser scanner view (360° with
optional 2nd laser scanner)

Software tools

ANT(R)lab-2.0-Laptop-alone-actions

ANT lab

Vehicle & Mission Configuration Software
  • Supplied with every mini™️ lite product
  • Used by vehicle makers/integrators
  • Configure vehicles, map sites, create routes & actions (e.g. move forks)
  • Free, regular updates
BlueBotics_ANT-server-deadlockFreeTrafficControl-2-Laptop

ANT server

Mission & Fleet Management Software
  • Compatible with every miniTM lite
  • Configured by vehicle makers/integrators
  • Used by AGV operators
  • Includes: simulation, mission scheduling, interfacing (WMS, ERP, doors, elevators)
  • Cross-platform (control multiple types of ANT driven vehicle)
  • Multi-language web interface

Example Projects

UVC disfinection robot in airport setting

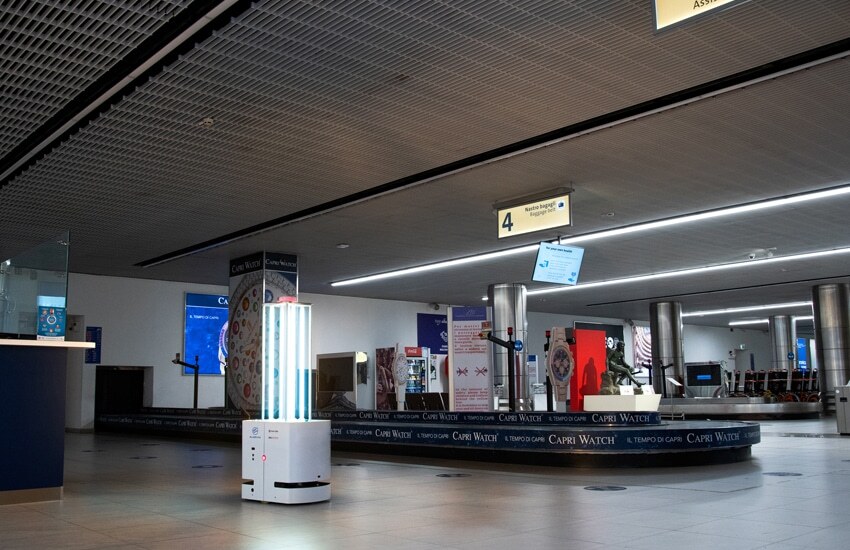

Development of an autonomous disinfection robot

Client: Engmotion

BlueBotics was approached by healthcare automation specialists Engmotion to develop a robust and fleet-ready autonomous disinfection robot. The result was the BlueBotics mini™ UVC.

UVC disfinection robot in airport setting
SITA Kate mobile reception robot

Development of an intelligent robotic kiosk

Client: SITA

We worked with SITA, provider of IT and telecommunication services to the air transport industry, to develop three prototypes of its SITA Kate check-in kiosk - moving from specification to delivery in under four months.

SITA Kate mobile reception robot

Let's Talk

To learn more about mini™ lite mobile robot platform, schedule a demo call with our team today.
